Provisioning a Log Analytics Workspace

This guide shows you how to provision a Log Analytics Workspace against Locally. As with the other guides we're going to use the Azure CLI, but the same resources can be provisioned with HashiCorp Terraform, Pulumi or Bicep too.

Before you start

Plugin required

This requires the Microsoft.OperationalInsights plugin, which you can install with:

$ locally plugin install --name Microsoft.OperationalInsights

1. Start Locally

Firstly, we need to launch Locally which we can do from a terminal by running:

$ locally build

Once Locally has started, the Locally Dashboard will open automatically:

Screenshot of the Locally Dashboard

2. Create a Resource Group

Next we can create the Resource Group:

$ locally run az group create -n sample-resources -l berlin

There's two things to note here:

  1. The Azure CLI supports Automatic Configuration, meaning that it can automatically be configured to work against Locally just by prefixing commands with locally run.
  2. Locally intentionally uses a different set of locations to Azure as a safety precaution, so that you can be confident you're deploying against Locally rather than regular Azure. You can also configure Locally to use the Azure locations too, but you'll want to be extra sure that you're prefixing commands with locally run when you do.

3. Create the Workspace

With the Resource Group in place, we can create the workspace:

$ locally run az monitor log-analytics workspace create -g sample-resources -n sample-logs -l berlin
{
  "customerId": "92f28e2b-01b6-44ba-9468-c82cedeabb96",
  "name": "sample-logs",
  "retention": 30,
  "sku": "PerGB2018"
}

Two things worth knowing about that response:

  1. customerId is the workspace ID - the value agents and diagnostic settings use to identify where to send data. It's generated for you, so it's the thing to capture if you're wiring something up.
  2. retention and sku come back with the same defaults Azure applies - 30 days on PerGB2018 - rather than being blank.

We can read the workspace ID back at any point:

$ locally run az monitor log-analytics workspace show -g sample-resources -n sample-logs --query customerId -o tsv

And list the workspaces in the Resource Group:

$ locally run az monitor log-analytics workspace list -g sample-resources --query "[].{Name:name, Sku:sku.name, Retention:retentionInDays}" -o table

Note

A workspace is the destination that diagnostic settings, agents and other services send data to, so it's usually one of the first things provisioned in an environment and referenced by everything else.

We can see the Log Analytics workspace in the Locally Dashboard too:

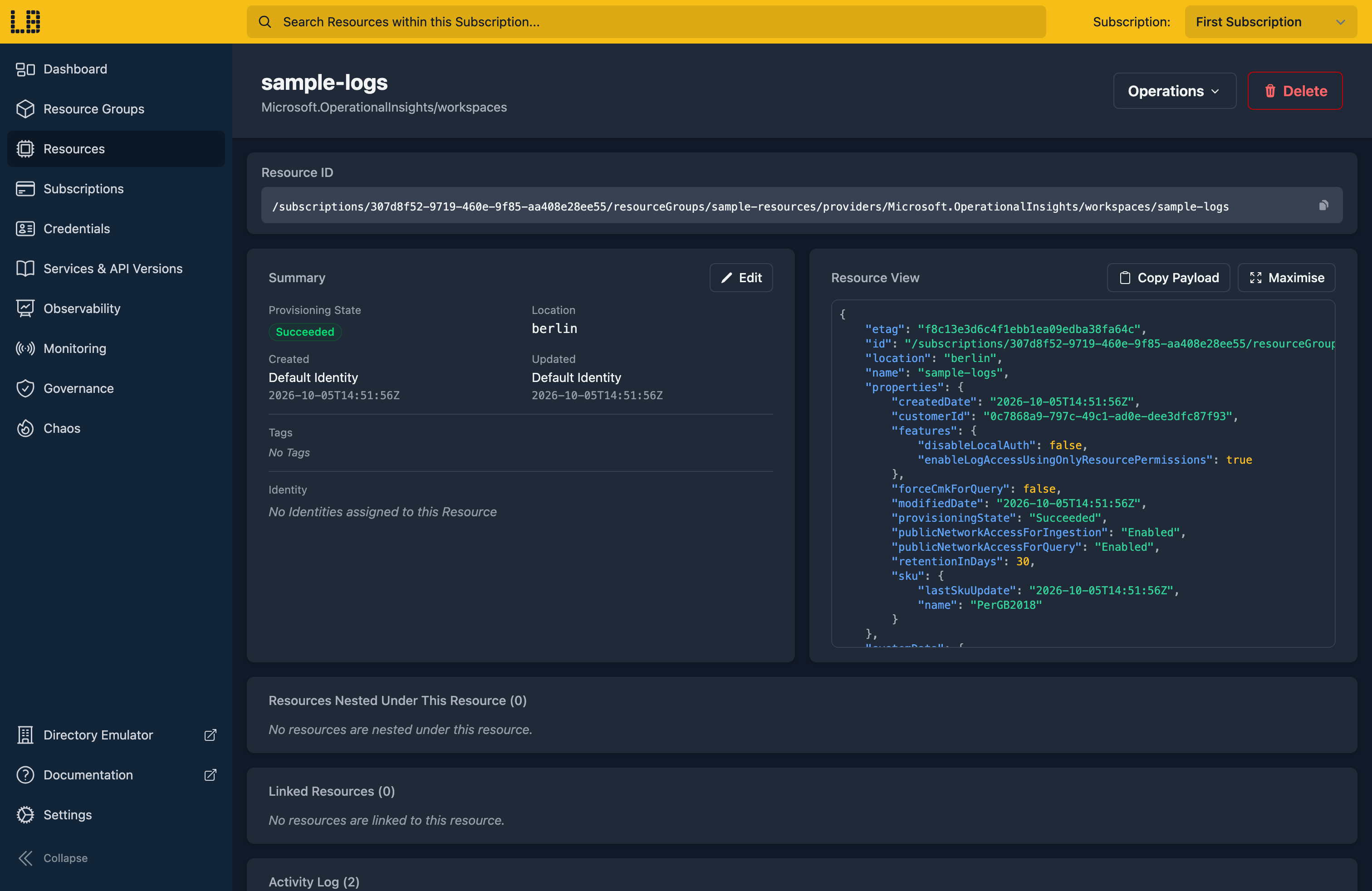

Screenshot of the Log Analytics workspace in the Locally Dashboard

4. Tidy up

Finally, we can tidy up. To remove the Resource Group and everything within it:

$ locally run az group delete -n sample-resources --yes

There's nothing billable to clean up, since everything ran on your machine, but it's still worth checking your teardown scripts work here before you run them against Azure.

Doing this with other tooling

Whilst this guide used the Azure CLI, Log Analytics works the same way through any of the tooling that Locally supports - a Microsoft.OperationalInsights/workspaces resource in HashiCorp Terraform or OpenTofu, Pulumi, Bicep or an ARM Template all provision against Locally in the same way, with only the location changed.

Next steps

To send logs to the workspace and query them, see the Log Analytics Emulator. Diagnostic Settings shows how to route a resource's logs into a workspace like this one.

Should you encounter any issues, please take a look at the troubleshooting section.
