Adding Federated Identity Credentials

1. Start Locally

Firstly, we need to launch Locally which we can do from a terminal by running:

Once Locally has started, the Locally Dashboard will open automatically:

2. Create a Resource Group

Next we can create the Resource Group to hold the Managed Identity:

There's two things to note here:

1. The Azure CLI supports Automatic Configuration, meaning that it can automatically be configured to work against Locally just by prefixing commands with locally run.
2. Locally intentionally uses a different set of locations to Azure as a safety precaution, so that you can be confident you're deploying against Locally rather than regular Azure. You can also configure Locally to use the Azure locations too, but you'll want to be extra sure that you're prefixing commands with locally run when you do.

3. Create the Managed Identity

We'll start with a user-assigned Managed Identity for the workload to sign in as:

{
  "note": "some fields skipped for brevity",

  "clientId": "8d9fa14d-f903-4372-bac2-eeca3d246f60",
  "id": "/subscriptions/307d8f52-9719-460e-9f85-aa408e28ee55/resourceGroups/sample-federation/providers/Microsoft.ManagedIdentity/userAssignedIdentities/sample-workload-identity",
  "location": "berlin",
  "name": "sample-workload-identity",
  "principalId": "deffb84e-a9ac-4efa-94e1-37e8e2eef1c6",
  "resourceGroup": "sample-federation",
  "tenantId": "59e01520-e049-4dfa-8a7d-1a847fc07763",
  "type": "Microsoft.ManagedIdentity/userAssignedIdentities"
}

4. Add a Federated Identity Credential

A Federated Identity Credential says which tokens the identity trusts. Here we're trusting workflows that run on the main branch of a GitHub repository:

{
  "note": "some fields skipped for brevity",

  "audiences": [
    "api://AzureADTokenExchange"
  ],
  "id": "/subscriptions/307d8f52-9719-460e-9f85-aa408e28ee55/resourceGroups/sample-federation/providers/Microsoft.ManagedIdentity/userAssignedIdentities/sample-workload-identity/federatedIdentityCredentials/github-main",
  "issuer": "https://token.actions.githubusercontent.com",
  "name": "github-main",
  "resourceGroup": "sample-federation",
  "subject": "repo:contoso/sample-app:ref:refs/heads/main",
  "type": "Microsoft.ManagedIdentity/userAssignedIdentities/federatedIdentityCredentials"
}

A token is only accepted when all three of these match it:

• issuer - the identity provider that issued the token, here GitHub Actions.
• subject - the workload the token was issued to, here the main branch of contoso/sample-app. This has to match exactly, including its case.
• audiences - who the token was issued for. api://AzureADTokenExchange is the value Azure recommends.

We can list the identity's Federated Identity Credentials to check it's there:

Issuer                                       Name         ResourceGroup      Subject
-------------------------------------------  -----------  -----------------  -------------------------------------------
https://token.actions.githubusercontent.com  github-main  sample-federation  repo:contoso/sample-app:ref:refs/heads/main

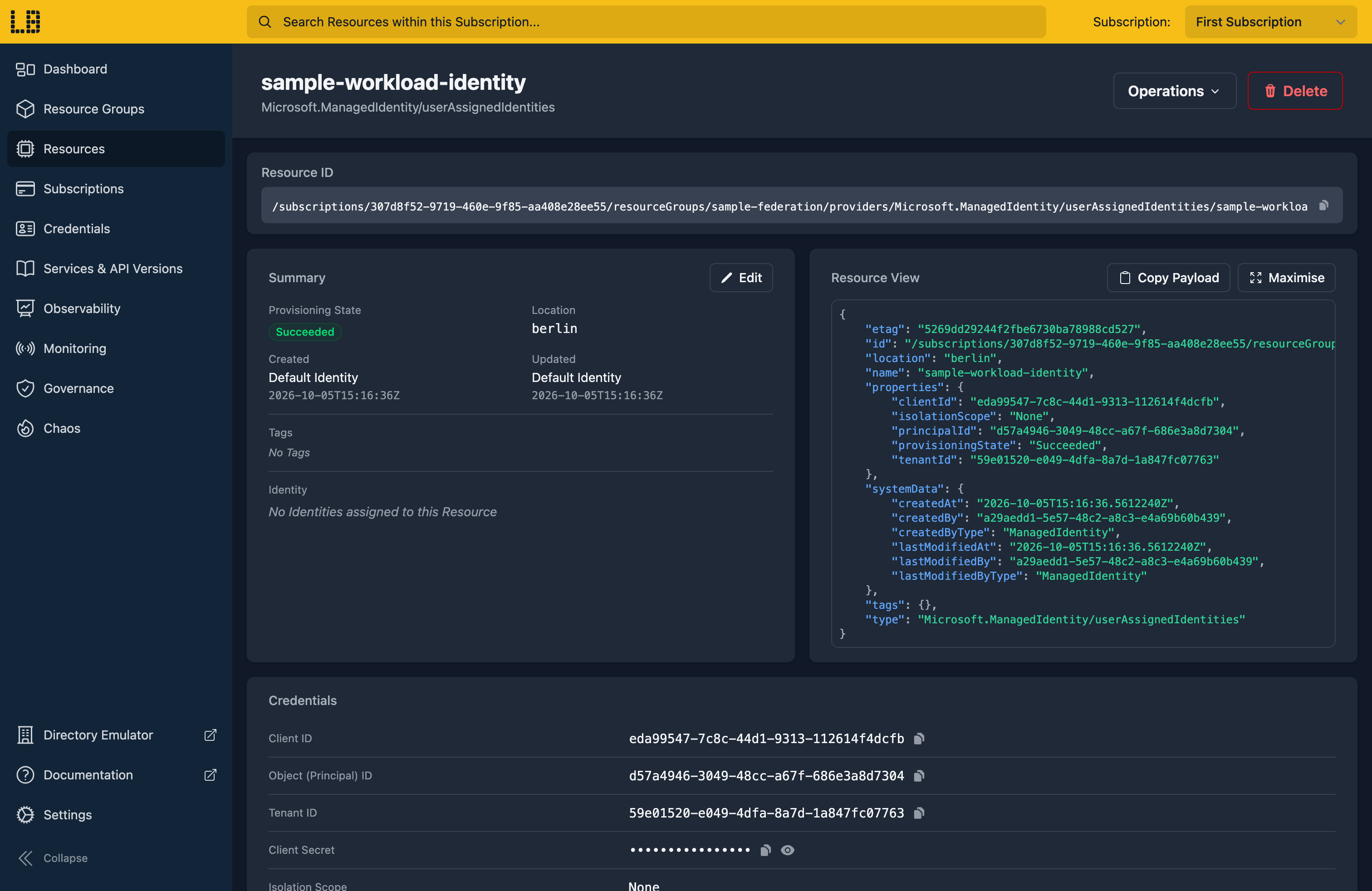

We can see the Managed Identity in the Locally Dashboard too:

5. Create an app registration

App registrations can have Federated Identity Credentials too. They live in Locally's directory rather than in a Resource Group, so we'll create one there:

{
  "appId": "b7385917-2423-410d-a1be-74fede50e779",
  "displayName": "sample-federated-app"
}

We'll need its appId in the next few steps, so let's keep it in a variable:

6. Add a Federated Identity Credential to the app

For an app registration, the Federated Identity Credential is passed as JSON, with the same issuer, subject and audiences as before:

{
  "audiences": [
    "api://AzureADTokenExchange"
  ],
  "id": "58cc32e6-a778-4019-aca4-76760ebcde3e",
  "issuer": "https://token.actions.githubusercontent.com",
  "name": "github-main",
  "subject": "repo:contoso/sample-app:ref:refs/heads/main"
}

Issuer                                       Name         Subject
-------------------------------------------  -----------  -------------------------------------------
https://token.actions.githubusercontent.com  github-main  repo:contoso/sample-app:ref:refs/heads/main

Locally applies the same rules as Azure here, so an app registration can't have two Federated Identity Credentials with the same issuer and subject. Trying to add a second one under a different name is refused:

ERROR: Issuer and subject combination already exists for this application (issuer "https://token.actions.githubusercontent.com", subject "repo:contoso/sample-app:ref:refs/heads/main")

7. Signing in with a federated token

When a workload signs in with a token from the issuer, Locally checks the token's issuer, subject and audience against the identity's Federated Identity Credentials, and verifies its signature against the keys the issuer publishes. If they all match, Locally issues an access token for the Managed Identity or app registration - with no secret involved.

8. Tidy up

Finally, we can tidy up. As the app registration lives in the directory rather than the Resource Group, it needs deleting on its own:

And to remove the Resource Group, along with the Managed Identity and its Federated Identity Credential:

Doing this with other tooling

Whilst this guide used the Azure CLI, Federated Identity Credentials on a Managed Identity are a Microsoft.ManagedIdentity/userAssignedIdentities/federatedIdentityCredentials resource, so they provision in the same way with HashiCorp Terraform or OpenTofu, Pulumi, Bicep or an ARM Template.

Next steps

Using a Managed Identity covers giving an identity access to a Key Vault, and Role Assignments covers how Locally enforces the roles you give it.

Should you encounter any issues, please take a look at the troubleshooting section.
