Provisioning Azure Cache for Redis

1. Start Locally

Firstly, we need to launch Locally which we can do from a terminal by running:

Once Locally has started, the Locally Dashboard will open automatically:

2. Create a Resource Group

Next we can create the Resource Group to hold the cache:

There's two things to note here:

1. The Azure CLI supports Automatic Configuration, meaning that it can automatically be configured to work against Locally just by prefixing commands with locally run.
2. Locally intentionally uses a different set of locations to Azure as a safety precaution, so that you can be confident you're deploying against Locally rather than regular Azure. You can also configure Locally to use the Azure locations too, but you'll want to be extra sure that you're prefixing commands with locally run when you do.

3. Create the cache

With the Resource Group in place, we can create the cache itself. We'll use the smallest size, a Basic C0:

Behind the scenes Locally starts a real Redis server in a container. The parts of the response we care about are the hostName and the sslPort:

{
  "note": "some fields skipped for brevity",

  "enableNonSslPort": false,
  "hostName": "sampleredisdocs1.redis.locally",
  "name": "sampleredisdocs1",
  "provisioningState": "Succeeded",
  "sslPort": 58248,
  "type": "Microsoft.Cache/redis"
}

That redis.locally hostname is served by Locally's own DNS server, and Locally handles TLS and the access key check in front of the container. Azure always uses port 6380 for TLS, but Locally picks a free port for each cache - so read sslPort from the response rather than hard-coding it.

We can retrieve the cache again at any point with:

Which gives us:

{
  "hostName": "sampleredisdocs1.redis.locally",
  "name": "sampleredisdocs1",
  "provisioningState": "Succeeded",
  "sku": "Basic",
  "sslPort": 58248
}

4. Get the access key

As in Azure, connecting to the cache needs one of its access keys:

{
  "primaryKey": "X/ELqExtxgvkhZJ5gq9gBuJn9PW3eD8SRzK56AuXPOg8",
  "secondaryKey": "y8j8WQ50/xJeg/R9u4Gns74vRKCfHBlFueViZnFl8Wta"
}

Rather than copying values around, locally redis connection-string puts the hostname, port and primary key together into a URL that redis-cli understands. Let's keep hold of it:

5. Connect with redis-cli

Now we can talk to the cache. Locally's certificates are signed by its own local CA, so we point redis-cli at that with --cacert. Let's write a key:

OK

And read it back:

hello from Locally

The URL starts with rediss://, so redis-cli connects over TLS without needing --tls. It also prints a warning that the password is on the command line, which is fine for a sample like this one.

Leave off SET or GET to get an interactive prompt instead. Without the key, the cache refuses commands with NOAUTH Authentication required, just like Azure.

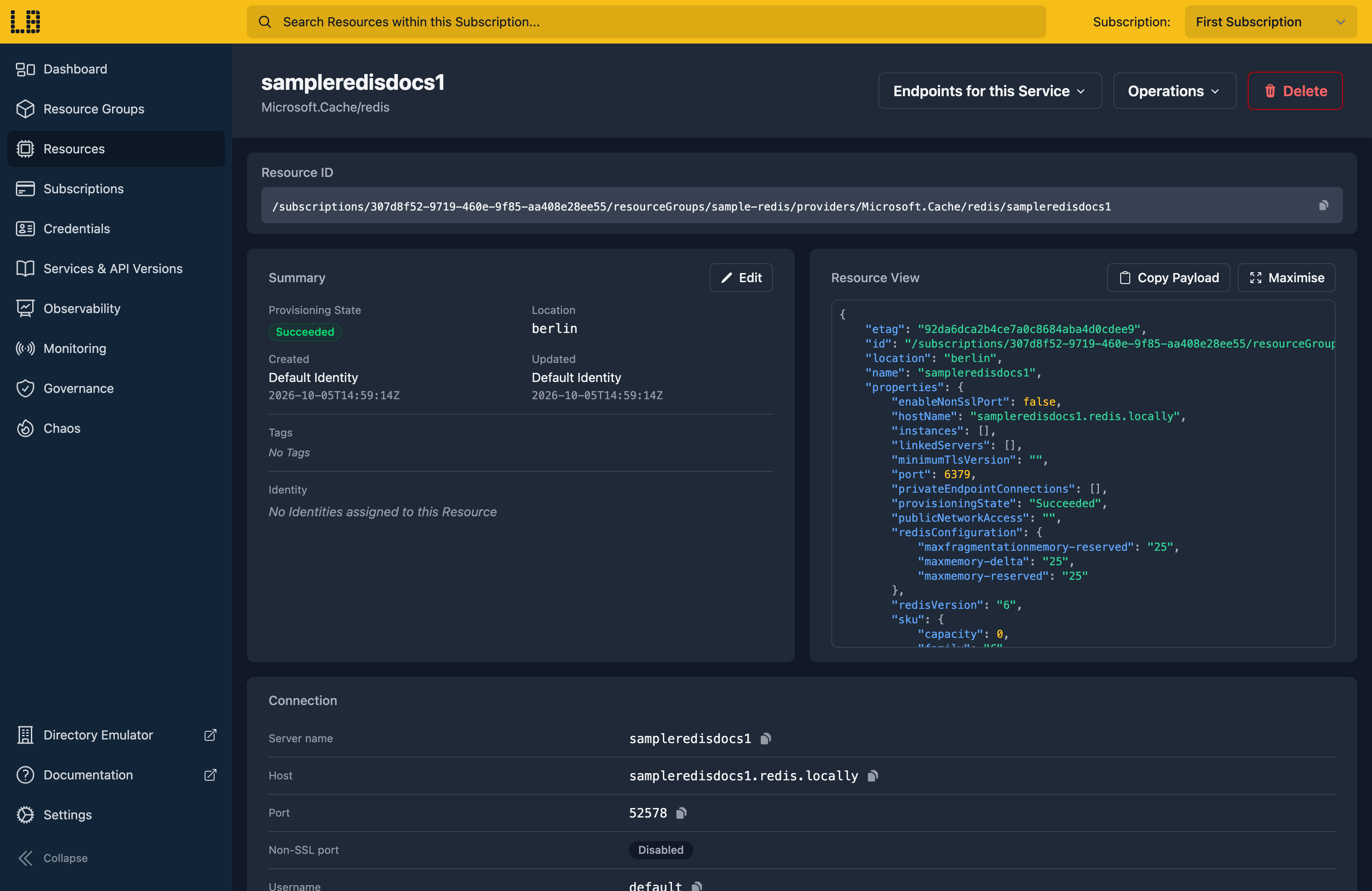

We can see the cache in the Locally Dashboard too:

6. Tidy up

Finally, we can tidy up. To remove the Resource Group and everything within it, including the Redis container:

There's nothing billable to clean up, since everything ran on your machine, but it's still worth checking your teardown scripts work here before you run them against Azure.

Doing this with other tooling

Whilst this guide used the Azure CLI, Azure Cache for Redis works the same way through any of the tooling that Locally supports - a Microsoft.Cache/redis resource in HashiCorp Terraform or OpenTofu, Pulumi, Bicep or an ARM Template all provision against Locally in the same way, with only the location changed.

The same goes for your application: any Redis client that supports TLS can connect using the hostName, sslPort and access key above. Just take the host and port from your tooling's outputs rather than assuming port 6380.

Next steps

To keep the access key out of your app's settings, store it in a Key Vault and read it with a Managed Identity.

Should you encounter any issues, please take a look at the troubleshooting section.
