Provisioning Service Bus Topics and Subscriptions

1. Start Locally

Firstly, we need to launch Locally which we can do from a terminal by running:

Once Locally has started, the Locally Dashboard will open automatically:

2. Create a Resource Group

Next we can create the Resource Group to hold the namespace:

There's two things to note here:

1. The Azure CLI supports Automatic Configuration, meaning that it can automatically be configured to work against Locally just by prefixing commands with locally run.
2. Locally intentionally uses a different set of locations to Azure as a safety precaution, so that you can be confident you're deploying against Locally rather than regular Azure. You can also configure Locally to use the Azure locations too, but you'll want to be extra sure that you're prefixing commands with locally run when you do.

3. Create the Service Bus Namespace

Topics live in a Service Bus Namespace, so we'll create one of those first:

{
  "name": "samplebustopics1",
  "serviceBusEndpoint": "https://samplebustopics1.servicebus.locally:5662",
  "status": "Active"
}

4. Create a topic

Next, a topic called orders:

{
  "defaultMessageTimeToLive": "P10675199DT2H48M5.4775807S",
  "maxSizeInMegabytes": 1024,
  "name": "orders",
  "status": "Active"
}

Unlike a queue, nothing reads from a topic directly. Each message sent to it is copied to every subscription whose rules it matches, and consumers read from those.

5. Create two subscriptions

We'll have one subscription that gets every order:

{
  "lockDuration": "PT1M",
  "maxDeliveryCount": 10,
  "name": "all-orders",
  "status": "Active"
}

And a second that we'll narrow down to high priority orders in the next step:

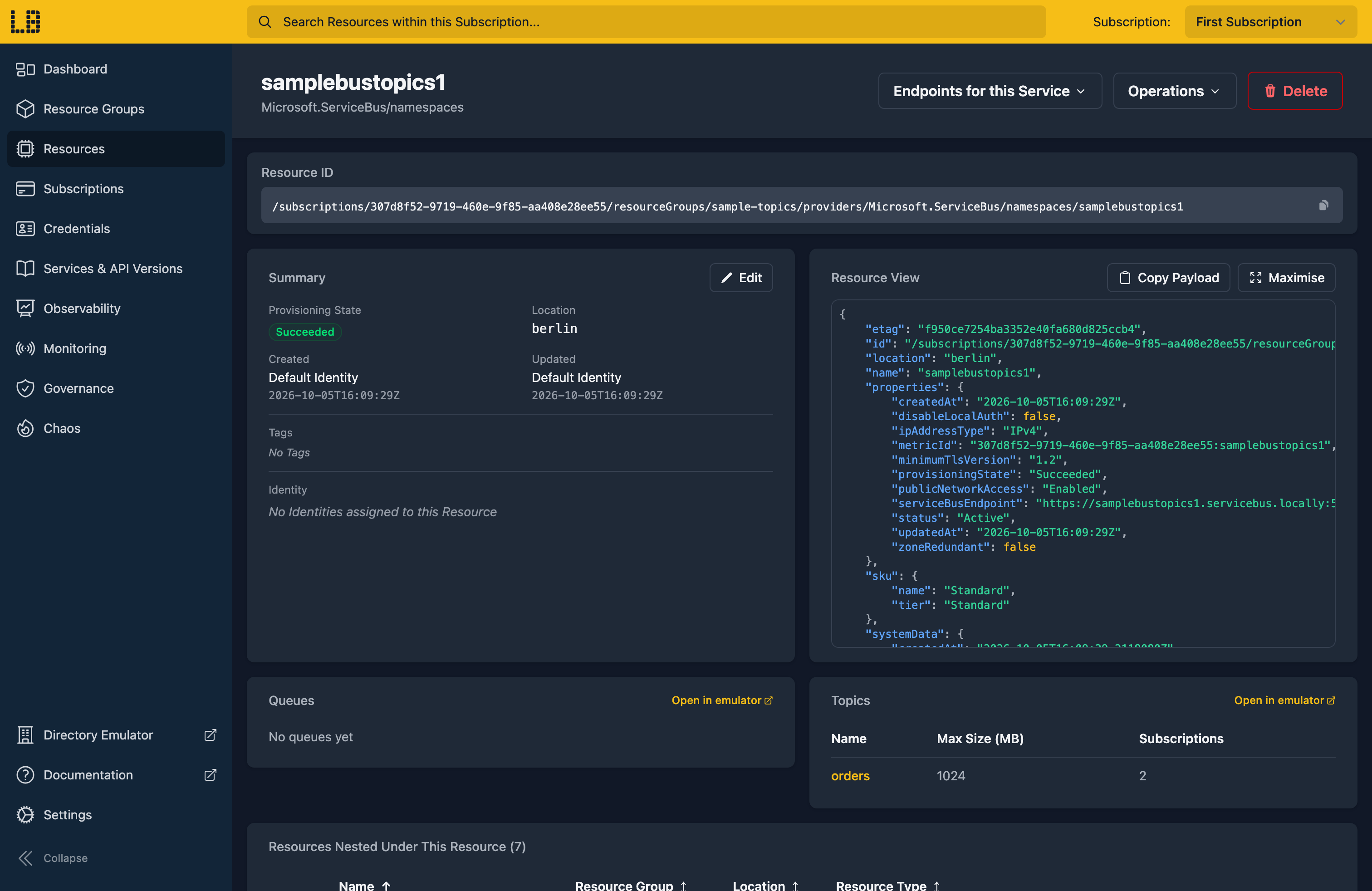

We can see the Service Bus Namespace in the Locally Dashboard too:

6. Add a filter rule

As in Azure, a new subscription comes with a rule called $Default that matches everything:

Name      Type       Expression
--------  ---------  ------------
$Default  SqlFilter  1=1

Let's add a SQL filter that only matches messages with a priority property of high:

{
  "filterType": "SqlFilter",
  "name": "high-priority",
  "sqlExpression": "priority = 'high'"
}

A message only needs to match one rule to be delivered, so while $Default is still there the new rule changes nothing. Let's remove it:

Which leaves just our filter:

Name           Type       Expression
-------------  ---------  -----------------
high-priority  SqlFilter  priority = 'high'

7. Get the connection string

Your application needs the namespace's connection string to publish to the topic and read from the subscriptions:

Endpoint=sb://samplebustopics1.servicebus.locally;SharedAccessKeyName=RootManageSharedAccessKey;SharedAccessKey=7H2ZVGxmJ+yJmmaJkmE3VMpMgtIIsOIpLkuUyxNXKMs=

That works with the Azure Service Bus SDKs unchanged, filters included.

8. Send some messages

Locally can send to the topic for us too. --property sets a custom message property, which is what the filter looks at. First, a normal priority order:

Sent message 70a25efe-5ee1-4373-b11a-6856c7962a8a to topic "orders" (sequence 1) (fanned out to 1 subscription(s)).

That went to one subscription. Now a high priority one:

Sent message de73571d-626e-4df7-ab0e-efc9d9d43cfd to topic "orders" (sequence 1) (fanned out to 2 subscription(s)).

And that one went to both.

9. See where they landed

Peeking at a subscription shows what's waiting in it, without consuming anything. all-orders has both:

[1] Sequence: 1  MessageID: 70a25efe-5ee1-4373-b11a-6856c7962a8a  Enqueued: 2026-10-05T15:39:10Z
    Properties:    map[priority:normal]
    Body:          {
                     "orderId": 1
                   }

[2] Sequence: 2  MessageID: de73571d-626e-4df7-ab0e-efc9d9d43cfd  Enqueued: 2026-10-05T15:39:11Z
    Properties:    map[priority:high]
    Body:          {
                     "orderId": 2
                   }

While priority-orders only has the high priority one:

[1] Sequence: 1  MessageID: de73571d-626e-4df7-ab0e-efc9d9d43cfd  Enqueued: 2026-10-05T15:39:11Z
    Properties:    map[priority:high]
    Body:          {
                     "orderId": 2
                   }

The message counts are visible through the Azure CLI as well:

Name             Messages
---------------  ----------
all-orders       2
priority-orders  1

10. Tidy up

Finally, we can tidy up. To remove the Resource Group and everything within it:

Doing this with other tooling

Whilst this guide used the Azure CLI, topics work the same way through any of the tooling that Locally supports - Microsoft.ServiceBus/namespaces/topics, Microsoft.ServiceBus/namespaces/topics/subscriptions and Microsoft.ServiceBus/namespaces/topics/subscriptions/rules resources in HashiCorp Terraform or OpenTofu, Pulumi, Bicep or an ARM Template all provision against Locally in the same way, with only the location changed.

Next steps

The Service Bus Emulator covers connecting to the namespace from the Service Bus SDKs. To test how your consumers cope when Service Bus misbehaves, see Chaos Engineering.

Should you encounter any issues, please take a look at the troubleshooting section.
